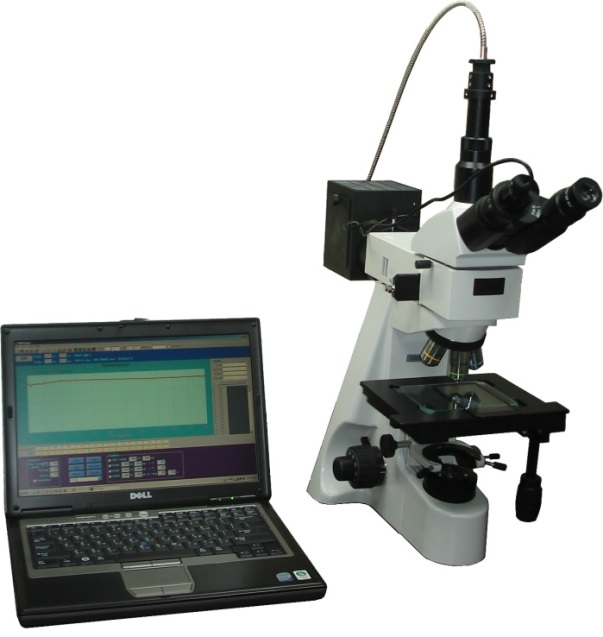

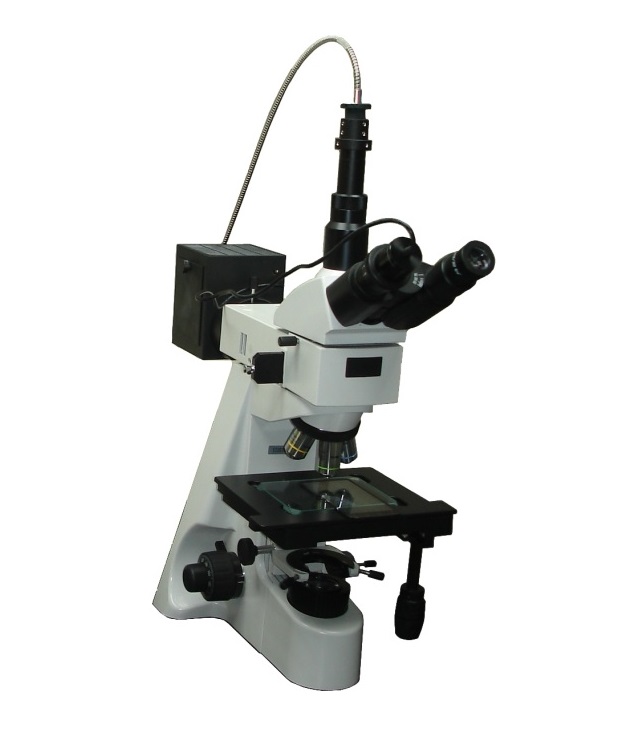

MS001 Microspectrophotometer
Adopt high-sensitivity photoelectric array detector (CCD), use special pinhole device for small sample (<30um) to improve measurement accuracy, reduce noise interference, and measure transmittance, reflectivity, chroma, and film thickness. , High stability and reproducibility, can immediately output the measurement result in word and excel format report
| Inspection System: Single Beam |
| Detector: 2048 CCD Array Detector |
| Light source: tungsten halogen lamp |
| Wavelength range: 400~1,000nm |
| Wavelength accuracy: 1nm |
| Wavelength repeatability: 0.02nm |
| Light source stability: ±1% per hour |
| Platform: 75x50mm Manual Mechanical Mobile Platform |
| Eyepiece: WF10 times (diameter 20mm) |
| Objectives: 5x, L10x, L20x, L40x |
